May 21

In this article, we mainly introduce the Economic Mud Recycling System manufactured by GN.

05034_副本

As the leader and top manufacture of solid-liquid separation equipments and drilling waste management, the economic customized mud recycling system is also 1 of GN’s core products.

As we know, the solid-liquid separation equipments or mud recycling systems are not only widely used in the Oil & Gas Drilling, there are many other industries or application fields that they also need to use, such as the HDD (horizontal directional drilling), Trenchless Crossing, Bore Piling, Shield Construction, Mining, Industrial Waste Management, etc.

05035_副本

For its application in these industries, the required treatment capacity or system size will be small, GN can make the economic mud recycling systems according customer requirements.



Like showed in below pictures,

  1. These small mud recycling systems can meet the actual work needs, meanwhile they have small size, compact structure and cost-effective;



  1. It is also customized, according to the actual need, GN can make the corresponding adjustment with the structure and configuration.



  1. There are 3 typical models of economic mud recycling system. They are



3.1) GNMS-200D, 200GPM’s treatment capacity;

3.2) GNMS-500D, 500GPM’s treatment capacity;

3.2) GNMS-1000D, 1000GPM’s treatment capacity;



  1. Main Application Fields: Bored Pile Project, Micro Tunnel Construction, Trenchless HDD project, Diamond Drilling, Waste Well Drilling, etc.





  1. Main Equipments: Double-deck Shaker, Desander, Centrifugal Pump, Mud Tank, etc.



  1. Main Working Principle:

Through slurry pump, the mud moves from the pit to the shaker and drops on the bottom layer screen. The 1st-stage separation will screen out the big solid particles and the liquid drop into the mud tank.



The centrifugal pump will pump the mud from the tank and goes into the desander, the desander will make the 2nd-stage separation. The discharged solid particles from the desander will drop on the upper layer screen to be further dryed and finally be discharged; the cleaned mud will be recycled and put into use.





Finally, Welcome to contact us for any need about the equipments or system, GN can make the customized solution for you.



Web:http://www.gnsolidsamerica.com

Email:[email protected]

written by GN Desander Desilter \\ tags: , , , , ,

Mar 15

GN Solids Control is China leading company to manufacture the solids controls equipment and drilling waste management equipment. Shale shaker as the first phase separation equipment at mud circulation system, play an important role in the system. Our company founded 7 years before and we start the shale shaker design and production from then.  Until now, GN shale shaker have been exported to over 60 countries and areas for oil drilling application.

For now, GN Solids Control have different type shale shakers for option,  2 panel shaker, 3 panel shaker and 4 panel shakers. The client can choose the proper model to fit their unique project

.shale shaker

2 panel shaker GNZS752E is mostly used in non oil drilling industry. Most of client buy the mini shaker for diamond drilling or waste water treatment.

3 panel shaker is mostly used in HDD drilling, waste water drilling and Workover rig mud cleaning system. Some client also use the 3 panel shaker for oil drilling project.

4 panel shaker is most popular in oil drilling project. The shaker with longer deck can have better treating performance, mostly used in 500gpm mud system, 1000gpm mud sytem, 1500gpm mud system.

GN 4 panel shaker is replacement for Swaco Mongoose shaker. We have same type shaker screen which is replacement for Swaco Mongoose composite material shaker screens. Cheaper price carbon steel frame material screen is also available.f

GN 4 panel shaker can also be used for drilling waste management, water based mud drilling cuttings drying process. We call the shaker High G drying shaker or High G dryer in drilling waste management. After treated by GN high G drying shaker, the OOC can be reduced to about 10%, and the valuable Water based mud can be collected for reuse and the dry cuttings can be buries for permanent stock.

For oil based mud cuttings treatment, we recommend Vertical cuttings dryer for better performance, the OOC can be reduced to below 5%. OBM cuttings are more hazardous to environment and need to be taken care of more carefully.

written by GN Desander Desilter \\ tags: , , , , ,

Feb 29

The solids control equipment like shakers, mud cleaner, centrifuge is widely used in the drilling fields, GN Solids Control is a top manufacture of these solids control equipment.

GN was founded in 2007 year, until now it has been through 9 years. In the past 9 years, GN specializes in manufacturing the solids control equipment and let “GN Solids Control” becomes a world-famous brand is the vision for all the people of GN in the future.



0204031

GN Solids Control

Now let us talk about GN’s strength:
1).GN has been concentrating on manufacturing the solids control equipment in the past 9 years. As what we said, concentration means endeavor, profession, experience, and also means success and harvest. Until now GN products have been servicing in over 60 countries in the world, most of the products were sold to the medium and high-end customers like Halliburton, Bake Huges.

2). In 2013, GN Solids America LLC was found in Houston, the Oil City of America, which is the 1st and until now it still be the biggest branch compared with other solids controls company from China. The goal is face to the customers in America, Canada, Mexico and to further expand the business and service the customers; http://www.gnsolidsamerica.com

3). GN is the 1st certified solids control company by API from China, also certified by Europe-CE, Russia CU-TR.

0204041

GN Solids Control Factory

4). GN has a special facility for manufacturing the shaker screens. Each year over 20000 pcs of shaker screen are sold to the customers from different countries. The screens are not only used on GN Shaker, but as the replacement screens used on other brand shakers like Derrick, Mi-Swaco, Nov-brandt Cobra, KEM-Tron.

5). GN has gotten 10 patents for making the solids control equipment, there are still some patens are under applying for.

6). With the solids control equipment, the product category of GN is complete. GN could manufacture the Shale Shaker, Mud Gas Separator, Desander, Desilter, Mud Cleaner, Centrifuge, Vertical Cutting Dryer, Agitator, Mud Gun, Centrifugal Pump, Screw Pump, Submersible Slurry Pump, Shear Pump, Flare Igniter, Screw Conveyor and Packaged Mud System;

Finally, if you want to learn more about GN Solids Control, welcome to visit GN’s website and contact us.
Web:http://www.gnsolidsamerica.com
Email:[email protected]

written by GN Desander Desilter \\ tags: , ,

Feb 15

GN Solids America LLC’s parent company, GN Solids Control LTD located near Beijing, China, is the solids control machinery manufacture who exports to sixty plus countries around the world’s oil and other drilling regions. With many other solids control machinery manufacture by GN Solids Control LTD, the GNSL series jet mud mixer is widely used paired with other solids control machinery and/or system.
GNSL series drilling fluid jet mud mixer’s purpose mixes the drilling fluid to many different add chemicals to change the density and viscosity of the drilling fluid. This drilling fluid machinery can meet the demand of the fluid weighting and mixing of drilling solids control system for many kinds of depth of drilling. Jet mud mixer structure contain of one centrifugal pump, one feeding hopper and the control panel (optional). Frankly, the pipes and valves connecting all these parts, the mud hopper use of the jet mud mixer is either 4“and 6” opening for additive chemicals.

GN Jet mud mixer

GN Jet mud mixer

The inner wall boundary, cavitation and erosion; swirl mixer pressure can’t bigger than 30% outlet pressure; the value of mixer should operate in flexible, able to seal and reliable; each hoop and flange joint should be properly sealed for reliable working order and don’t have leakage. It is integrated with Ventura hopper and mechanical seal, jet mixing pump which are connected with manifold valve.
The drilling fluid jet mud mixer can assist rig workers to get the ideal drilling fluid with good properties by adding bentonite clay, polymer and other chemical powder additives. The pump, hopper and the control panel all can be installed on a single skid, or on the skid at tank end or separately with the hopper on a tank top and the pump at tank side.





written by GN Desander Desilter \\ tags: , ,

Jan 28

The company who provides the environmental protection service may have this company for dredging in canals or lakes. Many years’ soil sedimentation down to water bottom, leaves falling in the water and then rot, as well as the trash threw into the normal water will make the river mattress higher and higher which leading often the pollution of the water and also the cutoff of the water flow. Therefore , we need take action to take out the sand, silt and trash at the bottom connected with water to make the water clear.
To take the solid things out from the water, we need a good and liquid separation system to do this job. As a foremost manufacturer of solids control equipment, GN solids control luckily jointed a project to really make the lake water clean really residence district. There is a dredging boat that can take the strong mixed with water from bottom level of the lake, the grubby slurry was sucked away and delivered on to the property with smelly smell.

Hull cleaning system

Hull cleaning system

The actual slurry is fed using a steel wire box just where large size solid stuff will likely be blocked and collected. Then your liquid will be pumped to be able to GN’s solids control system. In this system, GN created 3 stages for solids control including shale shaker, de-sander and de-silter. The de-sander and de-silter have underflow shaker that could stumble through discharges from cyclone considerably dryer. After treated with the de-silter cyclones, the sturdy stuff with size bigger than 15-20 microns will be eliminated. And the rest solid from the slurry is difficult to eliminate by using mechanical machinery.
Flocculation is a good method to gather often the ultra fine solids within the slurry. Add the flocculation agent into the slurry depending on certain ratio and then entirely mix with agitators. The flocculated slurry will need several times with regard to sedimentation and then will be streamed to belt filter click for final dewatering method. The solids will be dismissed with a thin cake design, and the water could be wiped away directly back to later or maybe river.
The advantage of the filtration system press is to make the solids much dryer, and negative aspect is high cost and modest treating capacity. Some other service provider will use decanter centrifuge to try and do the final dewatering job with consideration of its much larger treating capacity.

written by GN Desander Desilter \\ tags: , , , , ,

Nov 27

While China leading manufacturer with regard to solids control mud system, we committed to promote the caliber of equipment & quality regarding contract & quality associated with after sales service. Equally overseas clients & local clients witness the growth involving GN Solids Control; depend on GN high quality equipment as well as service, repeated order implemented continuously.

mud mixing tank-1
Recently, we conclude one set mud mixing system for South America Client. They use this mixing system to perfect liquid mud plant. The client is GN VIP client with through 3 year’s relationship; they have got used our shale shaker, decanter centrifuge, agitator, centrifugal pump before. Mainly tools of this order including:
1) Mud recycling tank system
2 sets decanter centrifuge, GNLW363CG Premium centrifuge. Designed with 3200rpm high speed belt pulley, the centrifuge can distinct fine solids above 2-5 microns.
2 set submersible slurry pump, GN50YZ20A-18 expensive slurry pump to give food to for decanter centrifuge.
just one set Shale shaker, GNZS594E-HB premium shaker with long decks 4 panel shale shaker screen. The shaker screen is actually composite material screen (carbon steel frame shaker screen for option) with extended lifetime and better performance.
a single set mud recycling tank with dimension 12192x2438x2590mm. Identical dimension as 40ft basic container. Electrical control panel system & tank gadgets also included.
2) Mud mixing tank system
3 units mud recycling tank together with dimension 12192x2438x2590mm. Same shape as 40ft general gift basket. Electrical control panel system & tank accessories included as well.

2 sets shear pump, GNJQB6x5A-550 shear pump mounted under water based mud / oil based mud operations platform to shear often the chemical big particles.
several sets centrifugal pump, GNSB6x5A-12J each centrifugal pump for every single mud tank.

centrifugal pumps
Other products including mud hopper, mud agitator, mud gun, levels monitor, lighting system and so forth
GN Solids Control devices are working in over 60 international locations & areas. Our PREMIUM client including but not restricted to Baker Hughes, CNPC, SINOPEC, OGNC, CPVEN, NIDC, COVER etc . If you are in need of solids control equipment & going waste management equipment, please contact us freely.
GN Solids Control head office: Beijing region, China; 40KM to Beijing International Airport
GN Solids America office: 6710 Windfern Highway, Houston, TX 77040, UNITED STATES OF AMERICA
GN Solids Russia place of work: Г. Москва, Радонежского Сергия Ул. д. 2

written by GN Desander Desilter \\ tags: , , ,

Oct 30

Every year, GN Solids Control provides many sets of solids control equipments or waste management systems for customers. All of these equipments are thoroughly discussed with customers before put into manufacturing. GN experienced workers are sparing no effort to manufacture excellent equipments with first class quality, which is also guaranteed by GN QC engineers. These whole equipments are assembled and tested before sent to customer’s worksite to make sure everything going well and save customers time, so when they’re arrived, these equipments can be put into use in a short period. Sometimes, there’re some equipments that will not be disassembled when transporting. For those customers need technical help from GN, GN can sent our experienced engineers to their worksite. Based on different work site’s environment, GN engineers will take all the solids control equipments into consideration which also involves in the layout of course. GN-Mud-System

Recently, GN Solids Control Co. has provided one whole set of mud system which is not the common layout. Since the room is limited, to put two shale shakers side by side is not possible. So after careful consideration, GN recommends to put the mud cleaner between two sets of shale shakers. As we all know, mud cleaner can separate much finer solids than shale shaker, so even we arranged to put the mud cleaner in the middle, we try to rearrange the two shale shakers pipelines. Pipelines from the separated shale shakers are connected to the mud cleaner directly, and the inlet pipelines to shale shakers are also separated. In order to keep the safety and protect the shale shaker, all the shaker deck are fixed with bolts before transportation. So when the shake arrives at customers’ worksite, these fixed bolts need to be disassembled first. GN also pays to some other details to keep all the equipments to use for a long life, such as use rubber coat to protect the shaker spring, use rubber slips to protect the shaker screens. GN equipments are devoting to the best!

written by desander desilter \\ tags: ,

Jun 07

GN supply mud system to European country for drilling waste management.. Mud system comprises drilling fluid cleaning system, mud mixing system and mud storage system.

 1 Mud Cleaning System

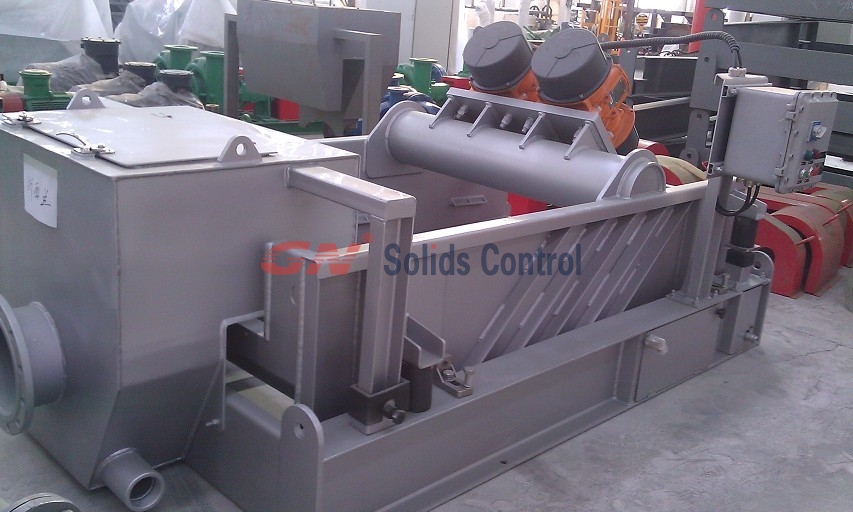

 Two sets of GNGZ703E shale shaker are with ATEX certification motor and CE certification which are the European mud system standard requirement.

 One set of mud cleaner is including 2 10” desander and 12 4” desilter with 703 model shale shaker

 Also, there are two centrifugal pump which are feeding the mud to desander and desilter

 2 Mixing Mud System and Storage Mud System

  Mixing mud system is made of two centrifugal pumps and few mud agitators. GN highly effective mud agitators are able to mix the drilling mud prevent the sediment.

 Storage mud system is made of mud agitator and mud tank which storage enough drilling mud to assist drilling process

 GN solids control system is recognized by the EU market again. It proven that GN is with high quality drilling waste management equipment and advanced solids control system. Our equipment has been exported over 65 countries and areas with fast after-sale service and competitive price. Choosing GN as your partner is an absolutely perfect decision.

written by desander desilter \\ tags:

Dec 29

China standard ZJ30 rig would always adopt 760 bbl mud system for recycling the drilling mud. For this nominal drilling depth 3000m(9900ft), the mud system from GN Solids Control is of 3 mud tanks with attached equipments. The famous solids control manufacturer like Derrick and MI-Swaco would offer the solution for 2 unit shale shaker, 1 unit desander and desilter.

GN 3000m Rig Mud System

GN 3000m Rig Mud System

760 BBL Mud System in GN

GN 760 BBL mud system is designed 3-tank system, one is recycling tank, then suction and storage tank, the third tank is mixing tank.

  • Recycling tank — 2 Units GNZS703 shale shaker with total capacity 1000GPM, 2 no. 10″ cone for desander and 12 no. desilter cone of 4″.
  • Storage tank — 3 units GN mud agitator and bottom mud gun. In order to get the much clean drilling mud, 1 unit centrifuge is proposed.
  • Mixing tank — Double venturi type mixing hopper combined with 2 unit 60HP mixing pump which are shunt-wound either one could be used as not only mixing pump, also charging pump.

Why for GN 760 BBL Mud System

As a specialist for drilling mud recycling, by offering the 760 bbl mud system, GN Solids Control consider the sufficient tank space to store the clean mud and easy for operating.
The largest advantage of GN shale shaker is simple structure and screen changing convenient. For the bearing used in agitator and centrifuge, GN would only select the SKF or FAG so that end user could get from anywhere of the world.
The principle of top quality but reasonable price was improved by the good feedback of GN customer from more than 50 countries.

Besides 760 bbl mud system, GN could also offer smaller or large capacity mud system like 560bbl and 1800bbl. Customer’s request is our mission. If you have any need for mud system or single solids control equipments, please feel free let us know.

written by GN Desander Desilter \\ tags: , , , , ,

Dec 21

Nowadays, the most popularly used oilfield shale shaker are BEM(Balanced Elliptical Motion) and Linear Motion. In China, GN Solids Control is the first one who got the API Certificate for producing shale shaker and other drilling fluids recycling equipments for oilfield application.

 Linear Motion Shale Shaker

Linear Motion Shale Shaker

When need shale shaker BEM or Linear Motion

Usually, shale shaker is used as the first stage drilling fluids recycling equipments in the Mud System, and the drilling fluids with cuttings flow into the shaker distribution box through rig elevated manifold.

  • Linear Motion – for fast conveyance and heavy loading

Linear motion shaker is especially effective while drilling top hole sectiong where heavy, high volume solids are usually encountered. In these intervals, shakers need to generate high G forces to effectively move dense solids across the screens.

  • BEM – for maximum retention time and drier cuttings

The BEM type shale shaker has gentler reduced G force, and the special vibration mode make the solids stay on the screen for longer time. This results in drier solids, improved drilling-fuid recovery, longer screen life and reduced operation costs.

BEM Shale Shaker Manufacturer

MI Swaco, a Schlumberger company, could offer the Mongoose PT daul motion shale shaker which could be adjust the vibration mode from linear motion to BEM “on the fly” by fliping the switch without suspending or shutting down the operation.
GN Solids Control, only foucs on International market and high level domestic market, could offer both the Linear motion and BEM shale shaker used in not only Oilfield, but also the HDD & CBM.  The simple structure design and top quality make GN get more and more praise from our customer.
Mongoose daul motion shale shaker by using an extra 0.6hp vibration motor to allow the shaker perform on an unparalleled level, GN’s BEM shaker is using 2 units motor with different power.

Comparing with BEM shaker, Linear motion is more acceptable due to the mature technical and large quantity oilfield application experiencies. GN Solids Control would be your reliable supplier for solids control equipments once you have any request aroused.

written by GN Desander Desilter \\ tags: , , , , , ,
